How to install postgres_ai monitoring

~This documentation is under deveklopment; currently, the process includes many manual steps~

Choose your installation method

Two primary installation options are available:

  • Demo installation: Perfect for testing and learning, includes a synthetic database with sample data
  • Production installation: Connect to your existing PostgreSQL databases with full monitoring capabilities

Prepare VM

VM for postgres_ai monitoring

  • Linux machine with Docker installed (must be separate from your database server)
  • Docker permissions - the user running postgres_ai must have Docker access
  • Network access to Postgres database(s) you want to monitor
  • Database access - proper pg_hba.conf configuration for connections

Database requirements

  • Postgres versions: 14-17 supported
  • Required extension: pg_stat_statements must be created in the target database

System resources

  • Recommended minimal configuration: 3 CPU cores, 4 GiB RAM, 80 GiB disk space

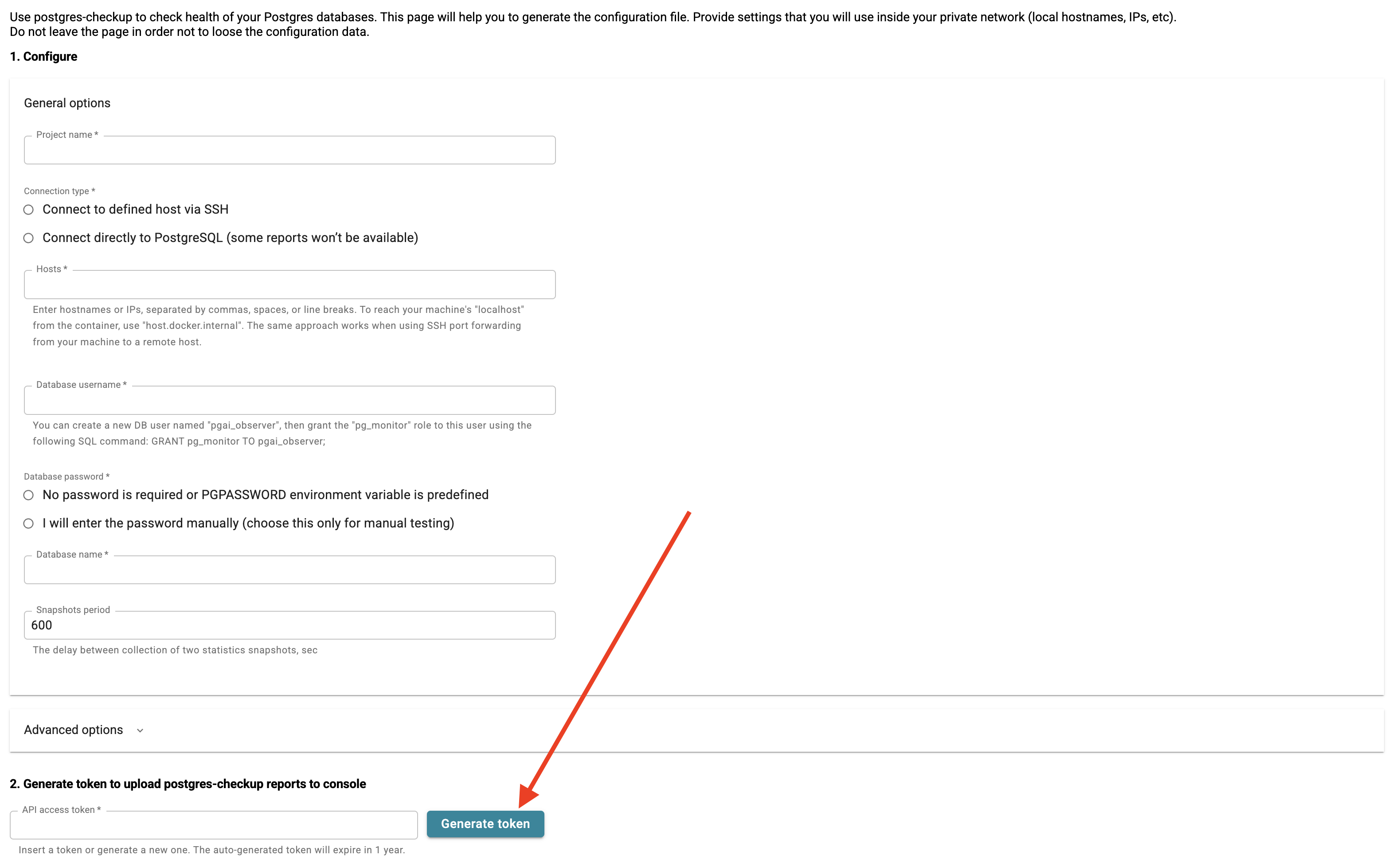

Obtain your organization's token in PostgresAI console

  • Sign up for an account at https://console.postgres.ai
  • Create a new organization
  • Navigate to Your Organization → Support → Checkup reports and proceed with the payment
  • Inside Your Organization → Support → Checkup reports click Generate new report and click Generate token
Generate access token

Security considerations

WARNING: Security is your responsibility!

This monitoring solution exposes several ports that MUST be properly firewalled:

PortServiceDescription
3000GrafanaDashboard interface (contains sensitive database metrics)
55000Flask APIBackend API service
55432Demo DBDemo database (only with --demo option)
55433Metrics DBPostgreSQL metrics storage
58080PGWatch PostgresDatabase monitoring interface
58089PGWatch PrometheusDatabase monitoring interface
59090PrometheusMetrics storage and queries
59091PGWatch PrometheusMetrics collection endpoint

Configure your firewall to:

  • Block public access to all monitoring ports
  • Allow access only from trusted networks/IPs
  • Use VPN or SSH tunnels for remote access

Example firewall configuration:

# Block public access to monitoring ports
sudo ufw deny 3000
sudo ufw deny 55000
sudo ufw deny 58080
sudo ufw deny 59090

# Allow access from trusted networks only
sudo ufw allow from 192.168.1.0/24 to any port 3000
sudo ufw allow from 10.0.0.0/8 to any port 3000

Failure to secure these ports may expose sensitive database information!

Database preparation

Create monitoring user

Connect to your Postgres database as a superuser and run:

-- Create monitoring user
begin;

-- Create user with secure password
create user postgres_ai_mon with password '<your_secure_password>';

-- Grant database connection
grant connect on database <your_database_name> to postgres_ai_mon;

-- Grant monitoring permissions
grant pg_monitor to postgres_ai_mon;
grant select on pg_stat_statements to postgres_ai_mon;
grant select on pg_stat_database to postgres_ai_mon;
grant select on pg_stat_user_tables to postgres_ai_mon;

-- Create public view for pg_statistic access (required for bloat metrics)
create view public.pg_statistic as
select
n.nspname as schemaname,
c.relname as tablename,
a.attname,
s.stanullfrac as null_frac,
s.stawidth as avg_width,
false as inherited
from pg_statistic s
join pg_class c on c.oid = s.starelid
join pg_namespace n on n.oid = c.relnamespace
join pg_attribute a on a.attrelid = s.starelid and a.attnum = s.staattnum
where a.attnum > 0 and not a.attisdropped;

-- Grant access to the view
grant select on public.pg_statistic to pg_monitor;

-- Set search path
alter user postgres_ai_mon set search_path = "$user", public, pg_catalog;

commit;

Enable pg_stat_statements extension

If not already enabled, add to your postgresql.conf:

# Add to postgresql.conf
shared_preload_libraries = 'pg_stat_statements'
pg_stat_statements.track = all
pg_stat_statements.max = 10000

Then restart Postgres and create the extension:

-- Connect to your database and run:
create extension if not exists pg_stat_statements;

Configure pg_hba.conf

Add connection rules for the monitoring user:

# Add to pg_hba.conf (adjust IP ranges as needed)
host <your_database> postgres_ai_mon <monitoring_server_ip>/32 md5

Reload Postgres configuration:

sudo systemctl reload postgresql
# or
select pg_reload_conf();

Using access tokens

Once you have an access token, you can use it during installation:

# Production installation with access token
./postgres_ai quickstart --api-key=your_access_token

# Or add it to existing installation
./postgres_ai configure --api-key=your_access_token

The access token enables automatic upload of monitoring data for health check analysis by our team

Note: Your database data remains securely within your infrastructure. Only aggregated metrics and performance statistics are shared with PostgresAI for analysis.

postgres_ai installation

Download the CLI

# Download the CLI tool
curl -o postgres_ai https://gitlab.com/postgres-ai/postgres_ai/-/raw/main/postgres_ai

# Make it executable
chmod +x postgres_ai

# Optional: Move to system PATH
sudo mv postgres_ai /usr/local/bin/

Option 1: Demo installation

Perfect for testing and learning:

# Complete demo setup with synthetic data
./postgres_ai quickstart --demo

This creates:

  • Demo Postgres database
  • Pre-configured monitoring
  • Sample data and queries
  • All dashboards ready to explore

Option 2: Production installation

For monitoring real databases:

# Basic interactive production setup
./postgres_ai quickstart --api-key=your_access_token

# Or with immediate database addition
./postgres_ai quickstart \
--api-key=your_access_token \
--add-instance="postgresql://postgres_ai_mon:password@host:port/database"

Wait for initialization

The installation process will:

  1. Download required Docker images
  2. Start all monitoring services
  3. Initialize databases
  4. Configure dashboards
  5. Begin collecting metrics

Verification

Check service status

# Verify all services are running
./postgres_ai status

# Check service logs
./postgres_ai logs

Test database connections

# Test specific database connection
./postgres_ai test-instance my-database-name

# List all configured instances
./postgres_ai list-instances

Verify data collection

After 5-10 minutes, you should see:

  • Metrics appearing in Grafana dashboards
  • Query statistics being collected

Post-installation configuration

Adding additional databases

# Add new database instance
./postgres_ai add-instance

# Test the new connection
./postgres_ai test-instance database-name

Service management

# Restart all services
./postgres_ai restart

# View service logs
./postgres_ai logs

# Stop all services
./postgres_ai stop

# Start services
./postgres_ai start

Access points

After successful installation:

Primary interface

  • Grafana Dashboards: http://localhost:3000
    • Contains all monitoring dashboards

Technical interfaces (advanced users)

  • PGWatch Interface: http://localhost:58080
  • Prometheus Metrics: http://localhost:59090
  • Flask API: http://localhost:55000
  • Demo Database (if using --demo): postgresql://postgres:postgres@localhost:55432/target_database

Troubleshooting

Common issues

Port conflicts:

# Check if ports are already in use
netstat -tlnp | grep -E '(3000|55000|58080|59090)'

# Stop conflicting services or change ports in configuration

Docker permission issues:

# Add user to docker group
sudo usermod -aG docker $USER

# Logout and login again, or run:
newgrp docker

Database connection failures:

# Test database connectivity
psql "postgresql://postgres_ai_mon:password@host:port/database" -c "select 1;"

# Check pg_hba.conf and firewall rules
# Verify pg_stat_statements extension is installed

Service startup issues:

# Check Docker daemon
sudo systemctl status docker

# View detailed logs
./postgres_ai logs --follow

# Check disk space
df -h

Getting help

# View all available commands
./postgres_ai help

# View configuration
./postgres_ai config

Log locations

  • Service logs: ./postgres_ai logs
  • Docker logs: docker-compose logs
  • System logs: /var/log/syslog or journalctl

Getting support

  • Documentation: Check project README and monitoring guides
  • Issues: Report problems via project issue tracker
  • Professional Support: Contact PostgresAI team for enterprise support

Success! Your postgres_ai monitoring solution is now ready to provide comprehensive Postgres monitoring and analysis.
